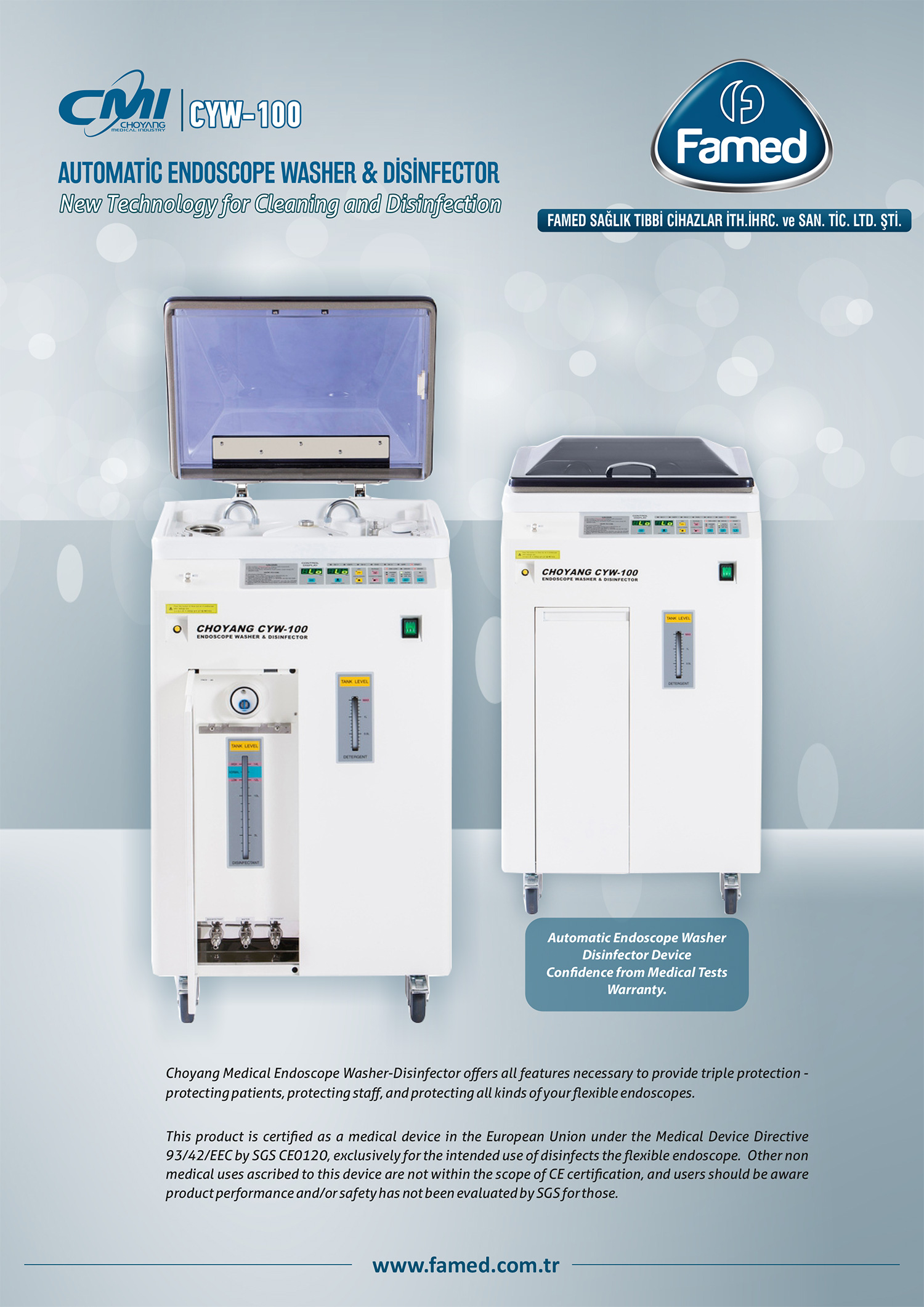

Endoscope Washer & Disinfector: CYW-100

SPECIFICATION

A. Features;

• Single scope cleaning and disinfection
• Leakage test
• Compatible with flexible scopes (Fujinon, Olympus, Pentax, ect.,)
• Full automatic procedure
• Perfect washing and disinfection by the disk rotor
• Multi-channel jetting system rotated in 360o
• Enhanced sensor package
  (basin full sensor, drainage sensor, level(high & low) sensor for water tank, low sensor for disinfectant tank )
• Advanced materials for anti-corrosion

B. Specification;

1. LEAKAGE TEST : Water Type
2. OPERATING PROCEDURE
   a. Time Washing - 10~50sec, 1min~5min
   Disinfection - 1 ~ 9 min, 10 ~ 50 min, 1 ~ 9 hr
   Detergent - 10 sec ( Spray type ) / Immersion type ( maximum 5minutes )
3. Program Mode(Automatic)
   Washing-Air-Detergent-Air-Washing-Air-Disinfection-Air-Washing-Air
4. TANK CAPACITY
   a. Water Tank Capacity : 15 Liter
   b. Detergent Tank Capacity : 1.5 Liter
