Endoscope Washer & Disinfector Cyw-501

SPECIFICATION

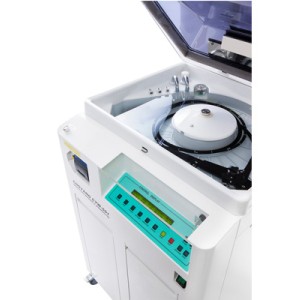

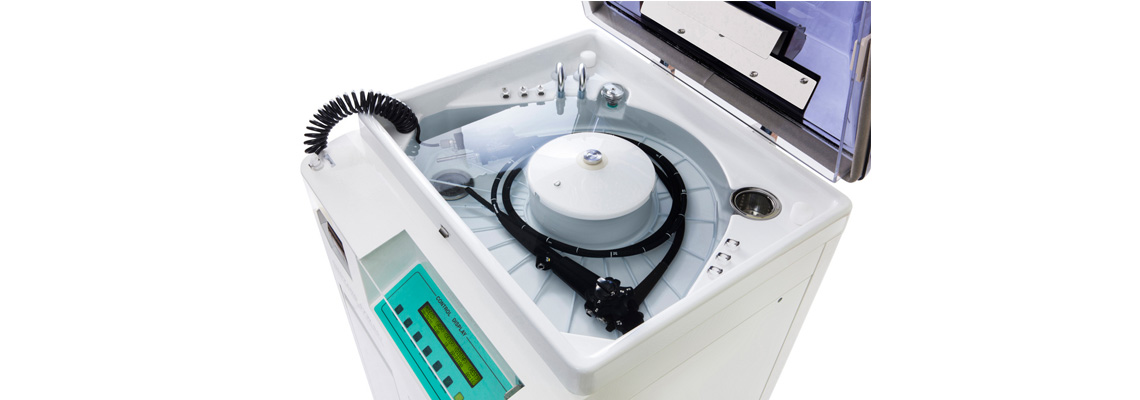

Endoscope Washer & Disinfector: CYW-501

A. Features;

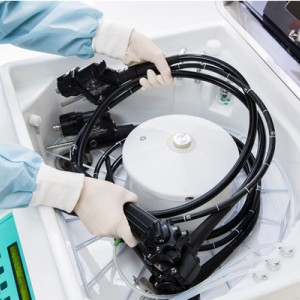

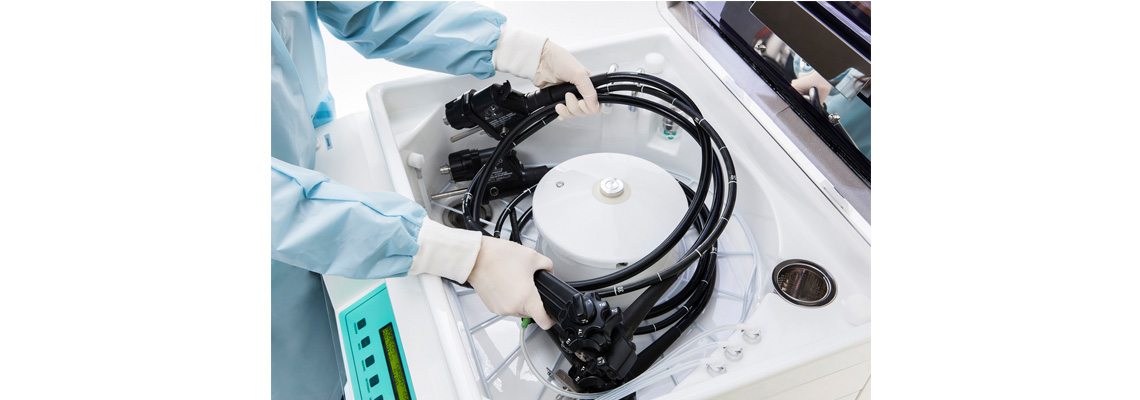

  • Dual scope cleaning and disinfection
  • Leakage test
  • Compatible with flexible scopes ( Fujinon, Olympus, Pentax, ect., )

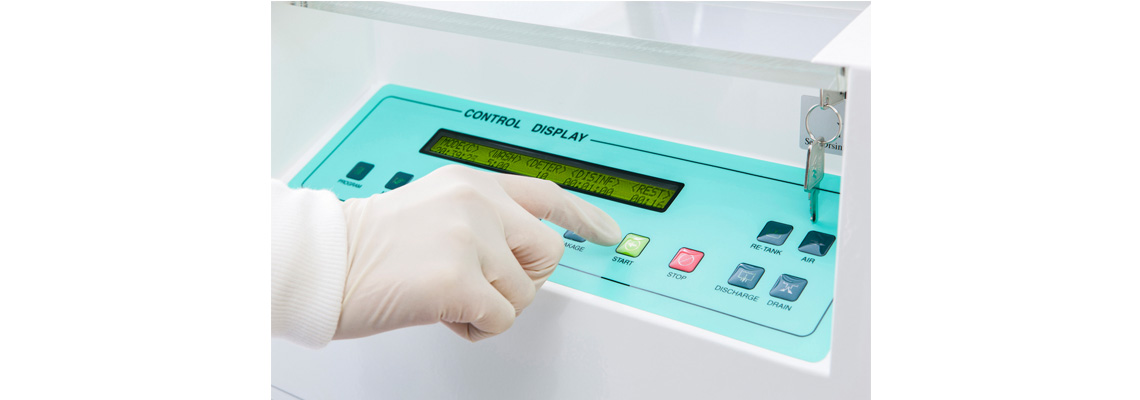

  • Full automatic procedure

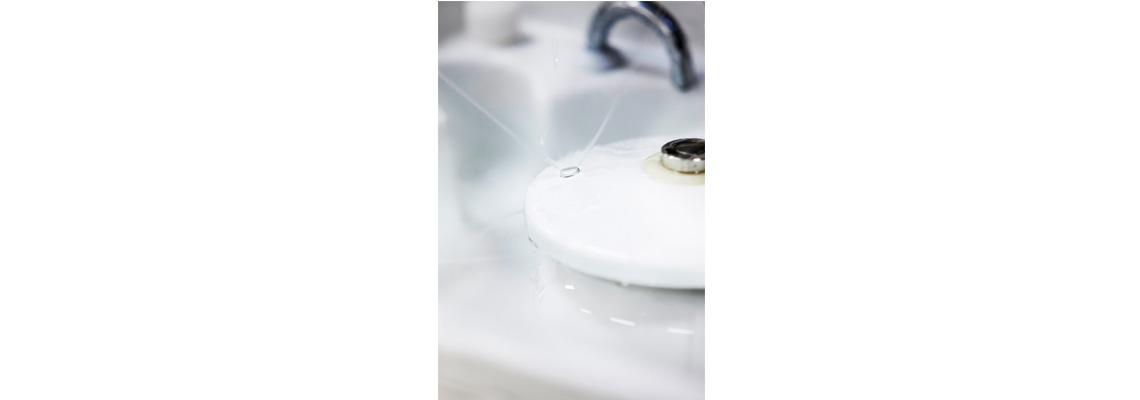

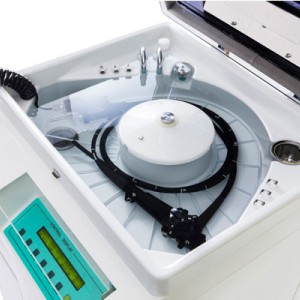

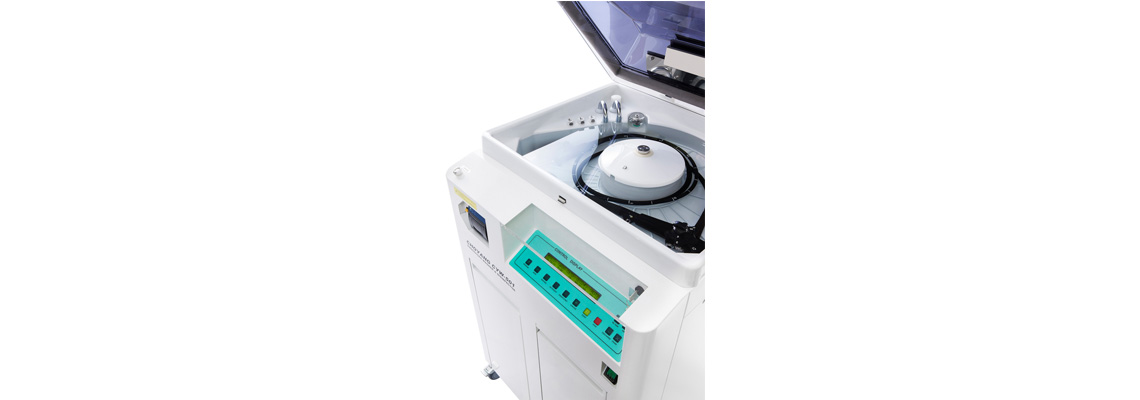

  • Perfect washing and disinfection by disk rotor

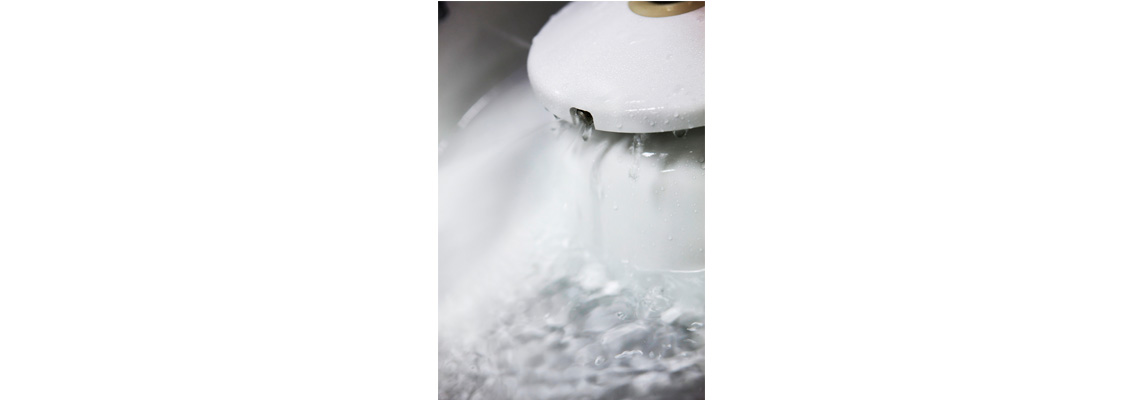

  • Multi-channel jetting system rotated in 360o
  • Enhanced sensor package
    (basin full sensor, drainage sensor, level(high & low) sensor for water tank, low sensor for disinfectant tank )
  • Advanced materials for anti-corrosion
  • Alcohol process for dry of inside channel

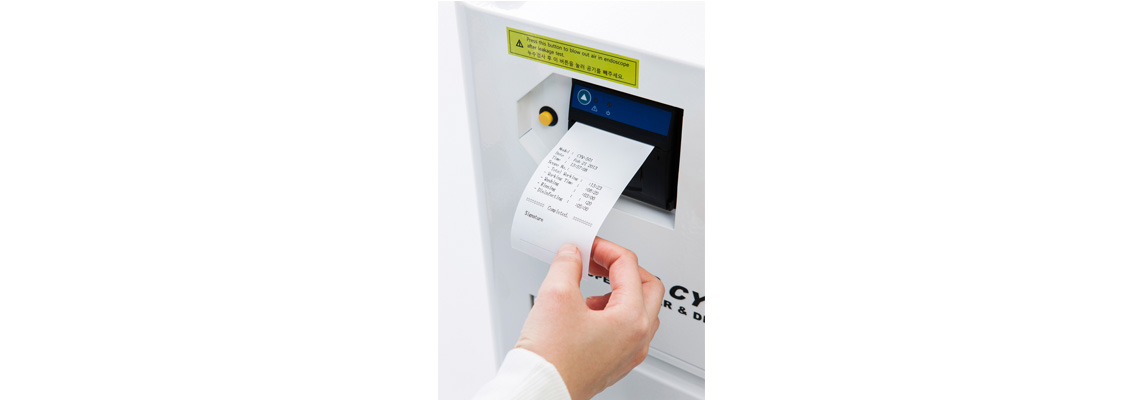

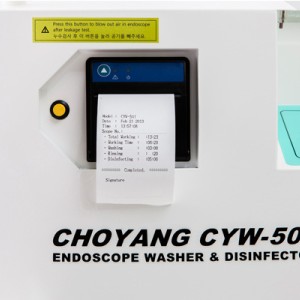

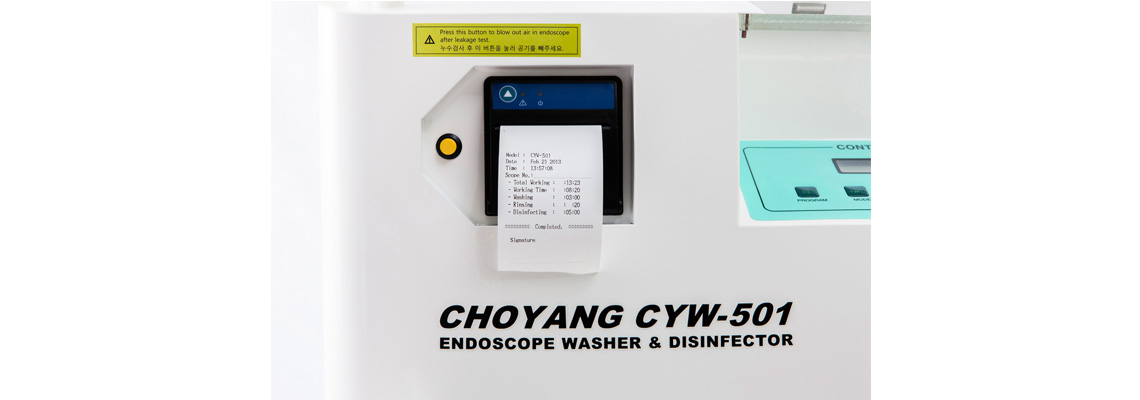

  • Printer system for database

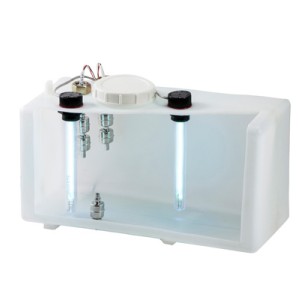

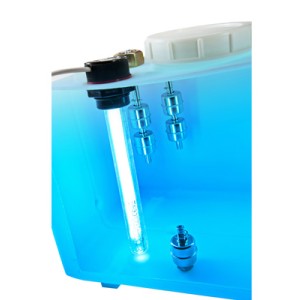

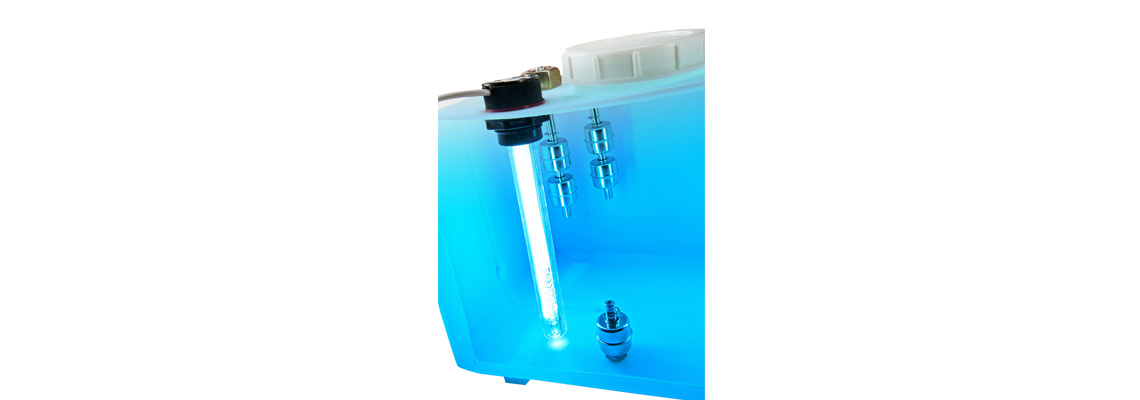

  • U.V lamp for water tank
  • Hour meter for U.V lamp.
  • External filter set ( pre-carbon-micron[0.2] )
  • Self disinfectant system
  • Heating system for disinfectant
  • Deodorization system
  • Foot switch lid opening system
    B. Specification;
    1. LEAKAGE TEST : Water Type
    2. OPERATING PROCEDURE
      a. Time Washing - 10~50sec, 1min~5min
      Disinfection - 1 ~ 9 min, 10 ~ 50 min, 1 ~ 9 hr
      Detergent - 10-30 sec ( Spray type )
    3. Program Mode(Automatic)
      A mode : Washing-air-detergent-air-washing-air-disinfection-air-washing-alcohol-air
      B mode : Washing-air-detergent-air-washing-air-alcohol-air
      C mode : Washing-air-disinfection-air-washing-air-alcohol-air
      D mode : same as A mode(disinfectant is discharged after 1cycle)
    4. TANK CAPACITY

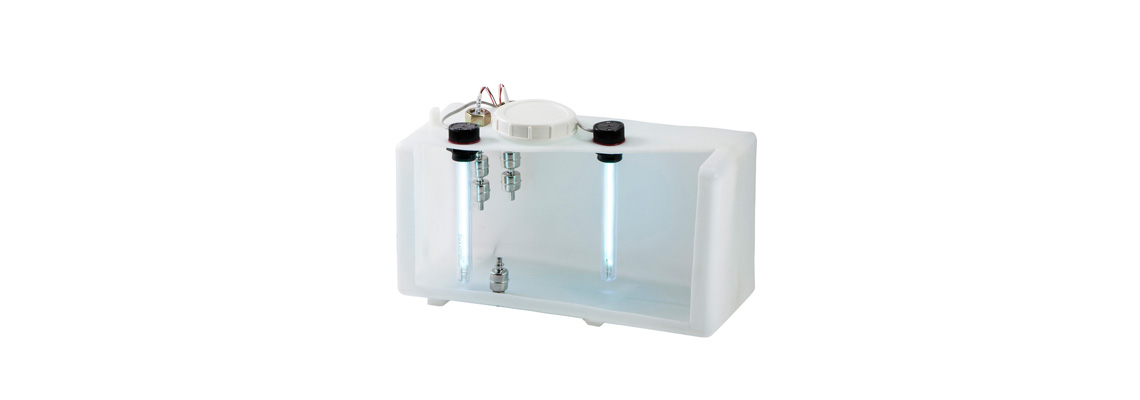

      a. Water Tank Capacity : 20 Liter

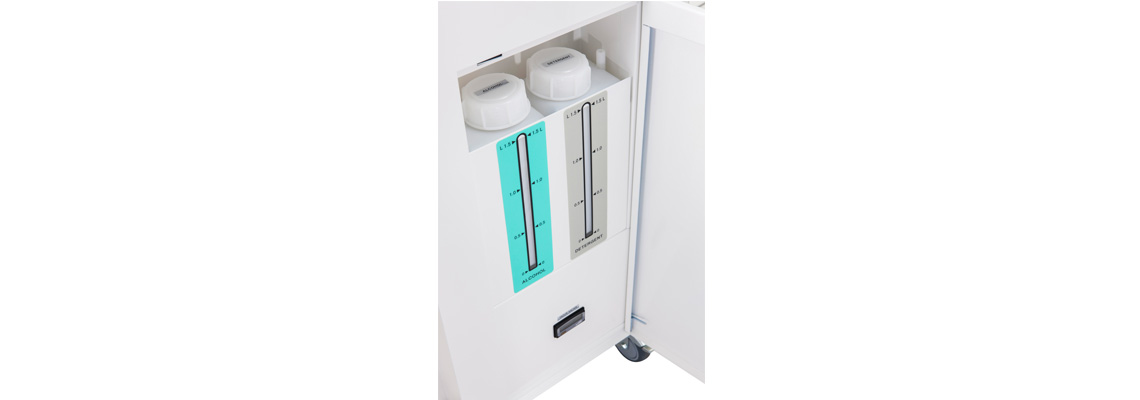

      b. Detergent Tank Capacity : 1 Liter
      c. Disinfectant Tank Capacity : 20 Liter
      d. Alcohol Tank capcity : 1 Liter
    5. CHANNEL CONECTION

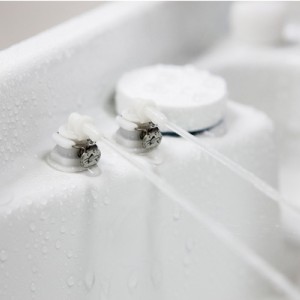

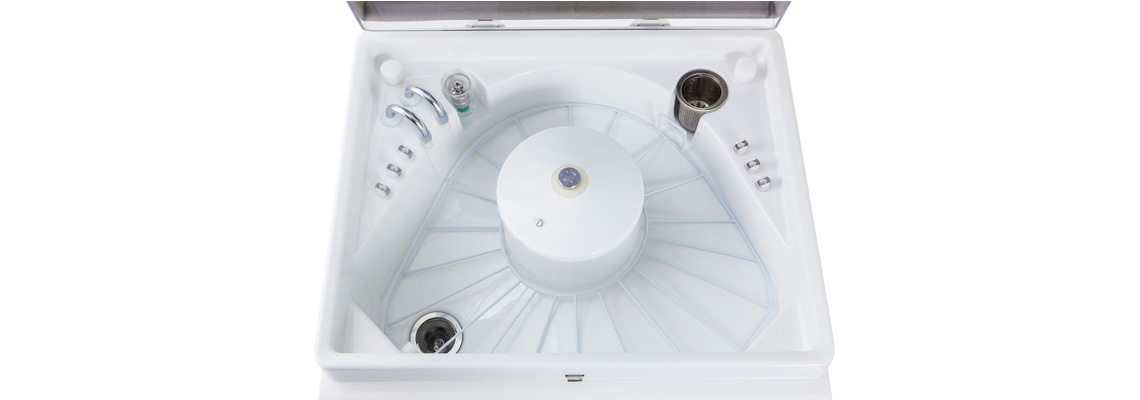

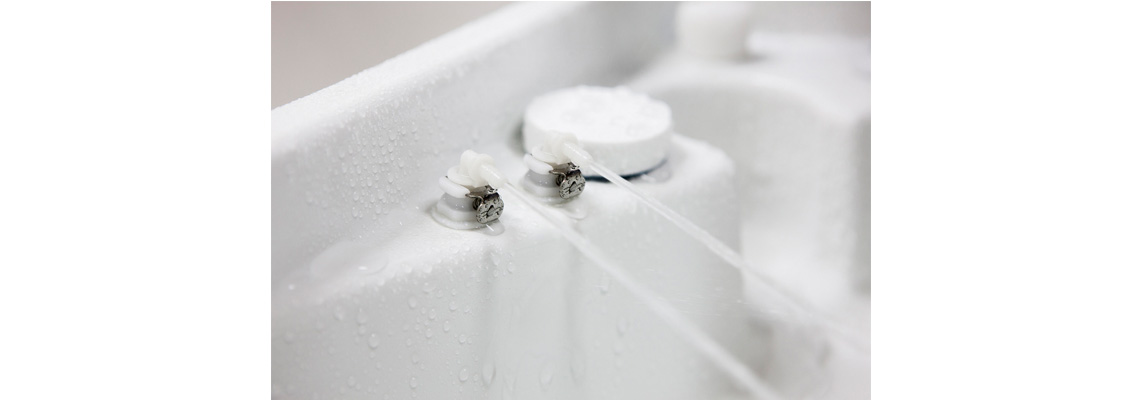

      a. 6 connection ports in a Basin (2 Scopes)
    6. DISCHARGE
      a. 1 Outlet(Compulsory discharge on rear pannel)

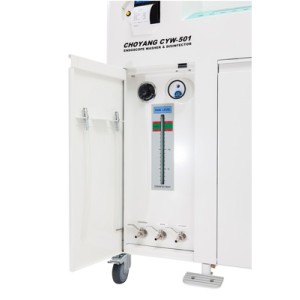

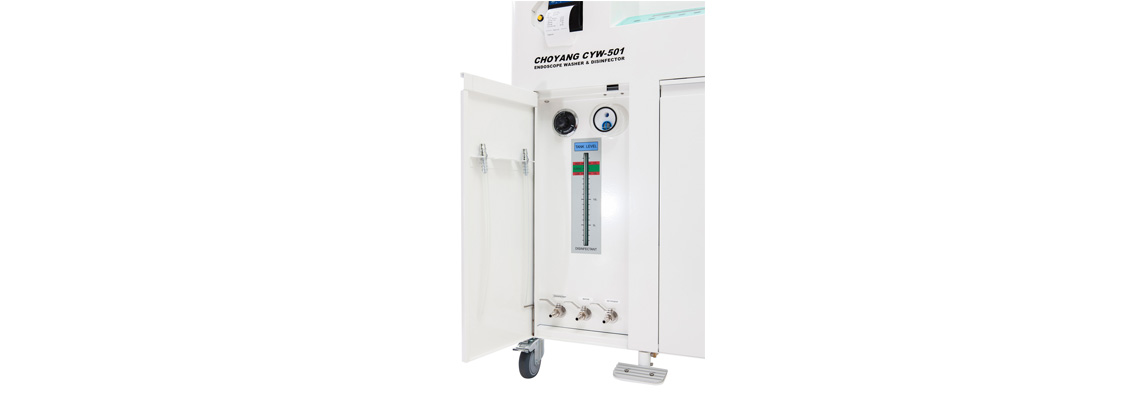

      b. 3 Outlet(in the front door - water, disinfectant, detergent)
    7. POWERAC : AC 220V, 60Hz
    8. DIMENSION : (W)640 ×( D)620 ×(H)1050
    9. Weight : 95 kg
      C . Consist of (include standard accessories, 1 set) ;
    10. Main body
    11. Endoscope grid
    12. Accessory Basket
    13. drain net
    14. p'channels with endoscope connecting tubes
    15. water supply & drain hose + adaptors
    16. Power cord
    17. Operation Manual + service manual
    18. Leak Test connecting Tube
    19. Fuse & Clamp
    20. Leakeage Jack for Olympus, Pentax, Fujinon
    21. Channel(air/water) adaptor for Olympus, Pentax, Fujinon ( Optional )
    22. External water filter set in a box ( Pre-filter -> carbon filter -> Micron filter )

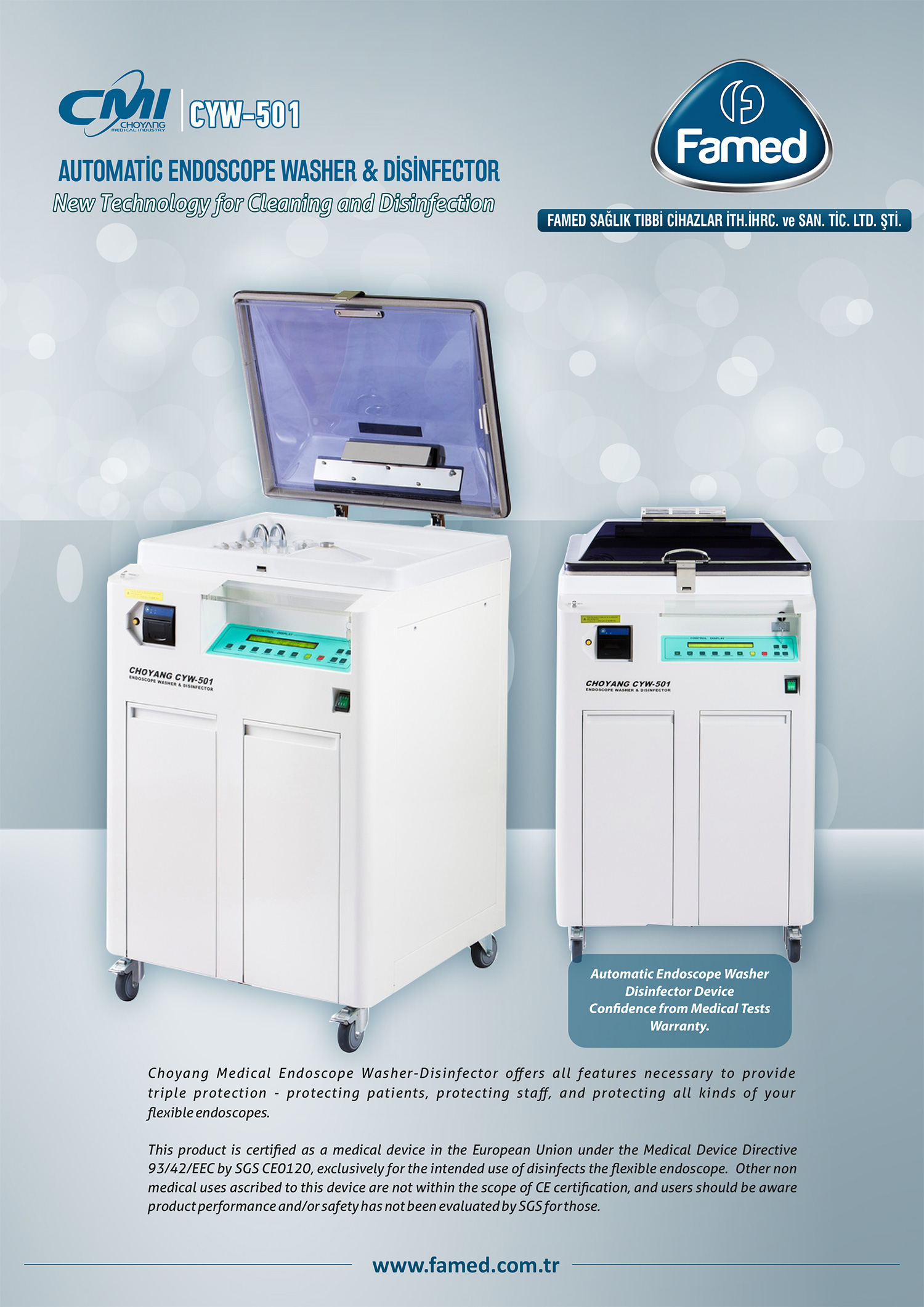

Brochure
